Natutal Gas 250kw Syngas Generator 100kPa Water Cooled Generator

Product Categories
Jigren Systems Co.,Ltd
Contact Now

Natutal Gas 250kw Syngas Generator 100kPa Water Cooled Generator

MOQ : a set of generator

Price : Negotiable

Delivery Time : 30 work days

Packaging Details : 3250*1150*1720mm, 2050kg for open genset; 4000*1450*1800mm, 3650kg for silent canopy

Product name : Gas Genset

Color : As your requirement

Type : Syngas Generator set

Fuel : Natutal Gas/Biogas/LPG

Fuel type : Syngas

Control panel : Smartgen

Engine type : in line

Cooling method : Water Cooling

Speed : 1500/1800rpm

Frequency : 50HZ/60HZ

Rated power : 10kw-1000kw

Rated voltage : 230/400V

Rated current : as per HZ

Contact Now

250kW Genset of Syngas Generator Set

Special Statement

  1. The technical data are based on a gas mixture of 60% CH4 and 40% CO2 with a calorific value of 5.78 kWh/Nm³.The technical data is based on standard conditions according to ISO8528/1, ISO3046/1 and BS5514/1
  2. The technical data is measured in standard conditions: Absolute atmospheric pressure: 100kPa; Ambient temperature: 25°C; Relative air humidity: 30%
  3. Rating adaptation at ambient conditions acc. to DIN ISO 3046/1. The tolerance for the specific fuel consumption is + 5 % at rated output

  4. Dimension and weight above are just for reference and may be subject to change. As this document is used only for presale reference, take the specification supplied by JIGREN before ordering as final

Model Efficiency Fuel Type Engine Model Alternator Genset Controller
Elec. Thermal Total Manufacturer Model Manufacturer Model
JIG250N-M 38.3% 48.9% 87.2% Natural Gas U26666N STAMFORD S4L 1D DEIF AGC200
JIG250N-C 37.3% 48.2% 85.5% Natural Gas U59596N STAMFORD S4 L1D DEIF AGC200
JIG250N-S 37.5% 47.9% 85.4% Natural Gas U35656N Mecc Alte ECO38 3L4 A DEIF AGC200
JIG250N-Y 37.5% 47.9% 85.4% Natural Gas U29656N Mecc Alte ECO38 3L4 A DEIF AGC200
JIG250B-Y 35.0% 48.5% 83.5% Biogas U52806B Mecc Alte ECO38 3L4 A SmartGen HGM 9510
JIG250S-Y 34.0% 50.5% 84.5% Syngas U00106S Mecc Alte ECO38 3L4 A SmartGen HGM 9510
JIG250P-Y 33.0% 48.5% 81.5% LPG U52806P Mecc Alte ECO38 3L4 A SmartGen HGM 9510
JIG250N6-M 38.3% 48.9% 87.2% Natural Gas U26666N STAMFORD S4L 1D DEIF AGC200
JIG250N6-C 37.3% 48.2% 85.5% Natural Gas U59596N STAMFORD S4L 1D DEIF AGC200
JIG250N6-S 37.5% 47.9% 85.4% Natural Gas U35656N Mecc Alte ECO38 3L4 A DEIF AGC200
JIG250N6-Y 37.5% 47.9% 85.4% Natural Gas U29656N Mecc Alte ECO38 3L4 A DEIF AGC200
JIG250B6-Y 35.0% 48.5% 83.5% Biogas U52806B Mecc Alte ECO38 3L4 A SmartGen HGM 9510
JIG250S6-Y 34.0% 50.5% 84.5% Syngas U00106S Mecc Alte ECO38 3L4 A SmartGen HGM 9510
JIG250P6-Y 33.0% 48.5% 81.5% LPG U52806P Mecc Alte ECO38 3L4 A SmartGen HGM 9510

Genset Model JIG250N-M JIG250N-C JIG250N-S JIG250N-Y JIG250B-Y JIG250S-Y JIG250P-Y JIG250N6-M JIG250N6-C JIG250N6-S JIG250N6-Y JIG250B6-Y JIG250S6-Y JIG250P6-Y
Prime Rating kW 250 250 250 250 250 250 250 250 250 250 250 250 250 250
KVA 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5 312.5
Standby Power kW 275 275 275 275 275 275 275 275 275 275 275 275 275 275
KVA 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75 343.75
Rated Voltage V 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400
Rated Current A 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1 451.1
Power Factor - 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Rated Frequency Hz 50 50 50 50 50 50 50 60 60 60 60 60 60 60
Rated Speed rpm 1500 1500 1500 1500 1500 1500 1500 1800 1800 1800 1800 1800 1800 1800

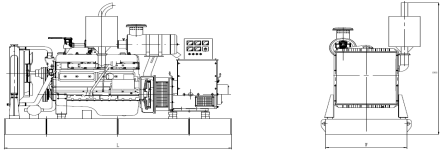

Spec Dimensions (Open)
(L × W × H)		 mm 3250×1150×1720 Natutal Gas 250kw Syngas Generator 100kPa Water Cooled Generator
Net Weight (Open) kg 2050
Dimensions
(Silent Canopy)
(L × W × H)		 mm 4000×1450×1800 Natutal Gas 250kw Syngas Generator 100kPa Water Cooled Generator
Net Weight
(Silent Canopy)		 kg 3650
